TGA8652-SL

TGA8652-SL, medium power wideband AGC amplifier, SMT, 12V, 110mA, TriQuint Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $100.00~120.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $100.00~120.00

PartNumber:: TGA8652-SL

Brand:: TriQuint Semiconductor - TriQuint | Pack: SMT | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Chen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-11-07

From Other Seller

Part Number:TGA8652-SL
US $100.00 - 120.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
IRFP260N

US $1.30 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The TGA8652-SL is a medium power wideband AGC amplifier combined with off-chip circuitry assembled in a surface mount package. The part typically provides 16 dB small signal gain with 6 dB AGC range. Typical input and output return loss is less than 10 dB. Typical Noise Figure is 2.5 dB at 3 GHz. Typical saturated output power is 25 dBm. Small signal 3 dB BW is 12 GHz with saturated power performance to 16 GHz. RF ports are DC coupled enabling the user to customize system corner frequencies. The applications of the TGA8652-SL include Mach-Zehnder Modulator Driver, Pre-Driver Description, Receiver AGC.

Parametrics

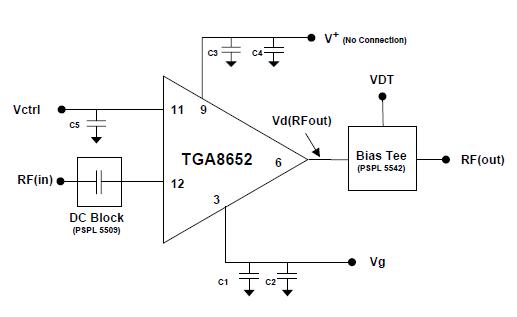

TGA8652-SL absolute maximum ratings: (1)POsitive supply voltage, V+, Vd(RFout), Drain bias applied thru on-chip termination: 12 V; (2)Drain bias applied at RF output using bias T: 10 V; (3)Positive supply current, V+, Id, Drain bias applied thru on-chip termination: 110 mA; Drain bias applied at RF output using bias T: 250 mA; (4)Pd, power dissipation: 2.4 W; (5)Negative gate, Vg, Voltage: 0 V to -3 V; Ig, Gate Current: 5 mA; (6)Control gate, Vctrl, Voltage: Vd/2 to –3 V; (7)Ictrl, Gate Current: 5 mA; (8)RF input, PIN, Sinusoidal Continuous Wave Power: 23 dBm; (9)TCH, operating channel temperature: 150℃; (10)TSTG, storage temperature: -40 to 125℃.

Features

TGA8652-SL features: (1)DC to 12 GHz linear bandwidth; (2)DC to 16 GHz saturated power bandwidth; (3)16 dB small signal gain; (4)Wide drive range: 4V to 8V; (5)25 ps edge rates (10/90); (6)Low power dissipation: 1.4 W at Vo = 8V; (7)Package size: 0.350 x 0.350 x 0.084 inches; (8)Evaluation board available.
