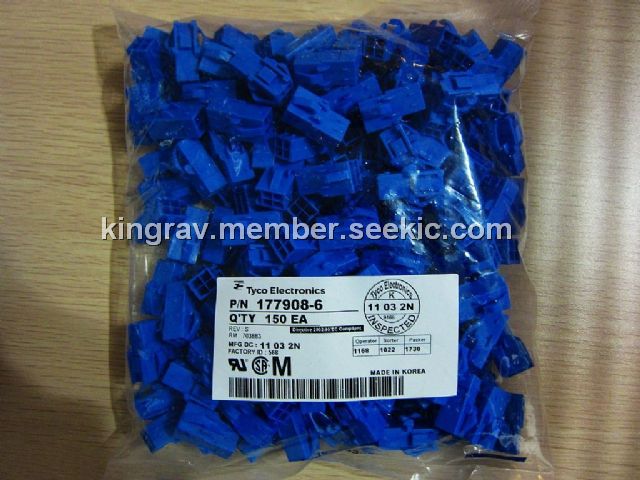

Product Summary

The 177908-6 Signal Double Lock Connector is a 2.5 mm centerline, compact, one-row connector for signal circuits. The connector consists of plug and cap housings for mwire termination, double lock plates for plug and cap housings, crimp snap-in contacts, and a PC boardmount post header. It accepts 26-20 AWG wire (e.g. UL 1007, 1061, 1571, etc.) with insulation diameters of up to 1.8 mm.

Parametrics

Performance characteristics: 1)Voltage Rating: 50 VAC/DC; (2)Current Rating: 3 A; (3)Overall Resistance: 10 mΩ max. (initial), 20 mΩ max. (final); (4)Insulation Resistance: 500 Ω (500 VDC); (5)Dielectric Withstanding Voltage: 1,100 VAC, one minute; (6)Contact Resistance: 20 mΩ max.; (7)Operating Temperature: -30℃~ + 105℃(The upper limit includes temperature rise from power carrying); (8)Applicable Wire: 26-20 AWG (UL 1007, 1061, 1571); (9)Wire Insulation Range: 0.93~ 1.8 mm; (10)PC Board Thickness: 1.6 mm.

Features

Features: (1)Product Type = Connector; (2)Connector Type = Housing; (3)Mount = Panel; (4)For Use With = Double Lock Plate 177918-1; (5)4 Positions.

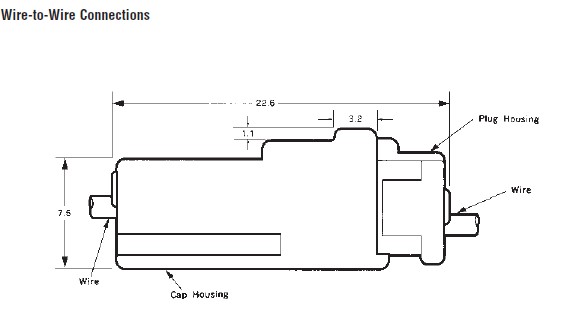

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
177908-6
177908-6

TE Connectivity

Pin & Socket Connectors POWER DLOCK CAP HSG P/M 4P

Data Sheet

0-1: $0.23
1-100: $0.21
100-500: $0.19
500-1000: $0.17
