Product Summary

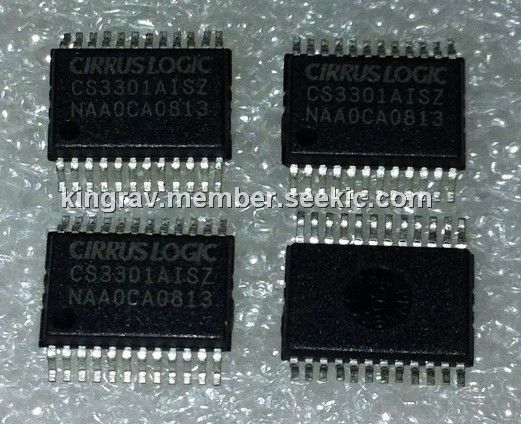

The CS3301A-ISZ is a low-noise differential input, differential output amplifier with programmable gain, optimized for amplifying signals from low-impedance sensors such as geophones. The gain settings are binary weighted (x1, x2, x4, x8, x16, x32, x64) and are selected using simple pin settings. Two sets of external inputs, INA and INB, simplify system design as inputs from a sensor and test DAC. An internal 800 Ω termination can also be selected for noise tests. Amplifier noise performance of the CS3301A-ISZ is outstanding with a noise density of 8.5 over the 0.1 Hz to 2 kHz bandwidth. Distortion performance is also extremely good, typically -121 dB THD at x1 gain. Flat noise down to 0.1 Hz and low total harmonic distortion make this amplifier ideal for low-frequency, low-amplitude, differential signals requiring maximum dynamic range.
Parametrics
CS3301A-ISZ absolute maximum ratings: (1)DC Power Supplies: -0.5 +6.8V (Positive Digital), -6.8 +0.5V (Positive Analog), -0.5 +6.8V (Negative Analog); (2) Analog Supply Differential: 6.8V; (3)Digital Supply Differential: 6.8V; (4) Input Current (Power Supplies): ±50 mA; (5)Input Current (Any Pin Except Supplies): ±10 mA; (6)Output Current: ±25 mA; (7)Power Dissipation: 500 mW; (8)Analog Input Voltage:(VA-)-0.5~(VA+)+0.5 V; (9)Digital Input Voltages: -0.5(VD)~+0.5 V; (10)Storage Temperature: -65~150℃.
Features
CS3301A-ISZ features: (1)Signal Bandwidth: DC to 2 kHz; (2)Selectable Gain: x1, x2, x4, x8, x16, x32, x64; (3)Differential Inputs, Differential Outputs; (4)Outstanding Noise Performance; (5)Low Total Harmonic Distortion; (6)Low Power Consumption; (7)Small 24-pin SSOP Package; (8)Bipolar Power Supply Configuration.
Diagrams
<IMG alt="CS3301A-ISZ circuit" src="http://www.seekic.com/uploadfile/ic-mfg/2012101203514502.jpg" border=0>
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 CS3301A-ISZ |
Cirrus Logic |
Special Purpose Amplifiers IC 24-bit Low-Noise ADC |
Data Sheet |
Negotiable |
|
||||
|
CS3301A-ISZR |
Cirrus Logic |
Special Purpose Amplifiers IC 24-bit Low-Noise ADC |
Data Sheet |
Negotiable |
|
||||
