Product Summary

The MT48LC4M32B2TG-7 IT:G 128Mb SDRAM is a high-speed CMOS, dynamic random-access memory containing 134,217,728-bits. The MT48LC4M32B2TG-7 IT:G is internally configured as a quad-bank DRAM with a synchronous interface (all signals are registered on the positive edge of the clock signal, CLK).

Parametrics

MT48LC4M32B2TG-7 IT:G absolute maximum ratings: (1)Voltage on VDD, VDDQ Supply Relative to VSS: -1V to +4.6V; (2)Voltage on Inputs, NC or I/O Pins Relative to VSS: -1V to +4.6V; (3)Operating Temperature, TA: 0℃ to +70℃; (4)Storage Temperature (plastic): -55℃ to +150℃; (5)Power Dissipation: 1W; (6)Operating Temperature, TA (IT): -40℃ to +85℃.

Features

MT48LC4M32B2TG-7 IT:G features: (1)PC100 functionality; (2)Fully synchronous; all signals registered on positive edge of system clock; (3)Internal pipelined operation; column address can be changed every clock cycle; (4)Internal banks for hiding row access/precharge; (5)Programmable burst lengths: 1, 2, 4, 8, or full page; (6)Auto Precharge, includes CONCURRENT AUTO PRECHARGE, and Auto Refresh Modes; (7)Self Refresh Mode; (8)64ms, 4,096-cycle refresh (15.6μs/row); (9)LVTTL-compatible inputs and outputs; (10)Single +3.3V ±0.3V power supply; (11)Supports CAS latency of 1, 2, and 3.

Diagrams

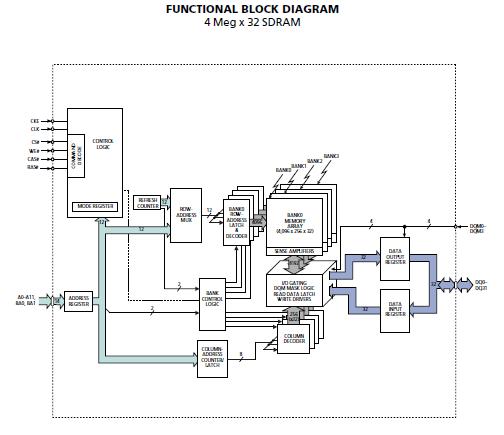

MT48LC4M32B2TG-7 IT:G circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

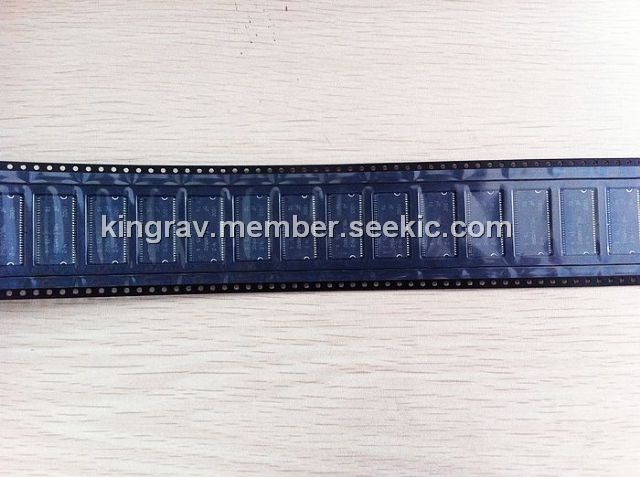

MT48LC4M32B2TG-7 IT:G TR
MT48LC4M32B2TG-7 IT:G TR


IC SDRAM 128MBIT 143MHZ 86TSOP

Data Sheet

0-1: $5.77
1-10: $5.31
10-25: $5.20
25-50: $5.18
50-100: $4.65
100-250: $4.51
250-500: $4.29
