Product Summary

The TLV320AIC3254IRHBR (sometimes referred to as the AIC3254) is a flexible, low-power, low-voltage stereo audio codec with programmable inputs and outputs, PowerTune capabilities, fully programmable miniDSP, fixed predefined and parameterizable signal processing blocks, integrated PLL, integrated LDOs and flexible digital interfaces. Applications of the TLV320AIC3254IRHBR include Portable Navigation Devices (PND), Portable Media Player (PMP), Mobile Handsets, Communication, Portable Computing, Acoustic Echo Cancellation (AEC), Active Noise Cancellation (ANC) and Advanced DSP algorithms.

Parametrics

TLV320AIC3254IRHBR absolute maximum ratings: (1)AVdd to AVss: –0.3 to 2.2 V; (2)DVdd to DVss: –0.3 to 2.2 V; (3)IOVDD to IOVSS: –0.3 to 3.9 V; (4)LDOIN to AVss: –0.3 to 3.9 V; (5)Digital Input voltage to ground: –0.3 to IOVDD + 0.3 V; (6)Analog input voltage to ground: –0.3 to AVdd + 0.3 V; (7)Operating temperature range: -40 to 85℃; (8)Storage temperature range:–55 to 125℃; (9)Junction temperature (TJ Max): 105℃; (10)Thermal impedance: 35 C/W.

Features

TLV320AIC3254IRHBR features: (1)Stereo Audio DAC with 100dB SNR; (2)4.1mW Stereo 48ksps DAC Playback; (3)Stereo Audio ADC with 93dB SNR; (4)6.1mW Stereo 48ksps ADC Record; (5)PowerTun; (6)Extensive Signal Processing Options; (7)Embedded miniDSP; (8)Six Single-Ended or 3 Fully-Differential Analog Inputs; (9)Stereo Analog and Digital Microphone Inputs; (10)Stereo Headphone Out; (11)Stereo Line Outputs; (12)Very Low-Noise PGA; (13)Low Power Analog Bypass Mode; (14)Programmable Microphone Bias; (15)Programmable PLL; (16)Integrated LDO; (17)5 mm x 5 mm 32-pin QFN Package.

Diagrams

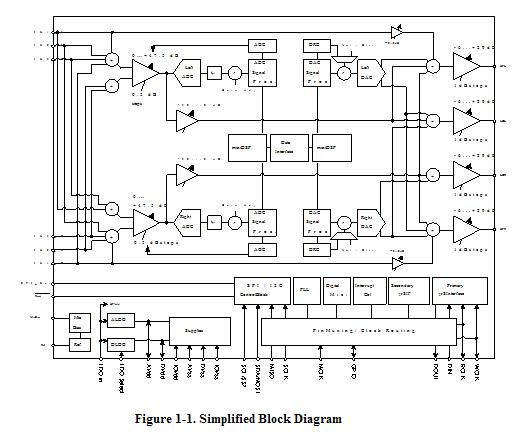

TLV320AIC3254IRHBR Simplified Block Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

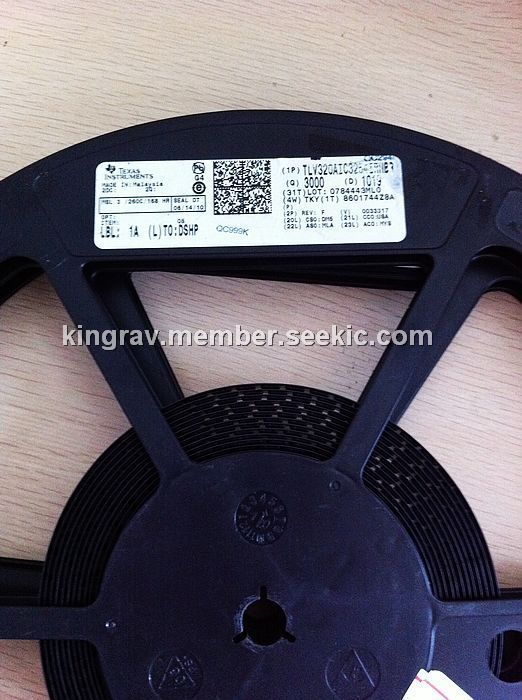

TLV320AIC3254IRHBR
TLV320AIC3254IRHBR

Texas Instruments

Audio CODECs Very LW PWR Stereo Audio CODEC/miniDSP

Data Sheet

0-2258: $3.15
2258-3000: $3.04
