Product Summary
The CS3302-IS is a high-input-impedance, differential input, differential output amplifier with programmable gain, optimized for amplifying signals from high-impedance sensors such as hydrophones. The gain settings of the CS3302-IS are bi-nary weighted (x1, x2, x4, x8, x16, x32, x64) and areselected using simple pin settings. Two sets of externalinputs, INA and INB, simplify system design as inputsfrom a sensor and test DAC. An internal 800Ω termina-tion can also be selected for noise tests.
Parametrics
CS3302-IS absolute maximum ratings: (1)DC Power Supplies: -0.3 +6.8V (Positive Analog), -6.8 +0.3V (Negative Analog), -0.3 +6.8V (Digital); (2) Analog Supply Differential: 6.8V; (3)Digital Supply Differential: 6.8V; (4) Input Current (Power Supplies): ±50 mA; (5)Input Current (Any Pin Except Supplies): ±10 mA; (6)Output Current: ±25 mA; (7)Power Dissipation: 500 mW; (8)Analog Input Voltage:(VA-)-0.5~(VA+)+0.5 V; (9)Digital Input Voltages: -0.5(VD)~+0.5 V; (10)Storage Temperature: -65~150℃; (11)Ambient Operating Temperature (Power Applied): -40~85℃.
Features
CS3302-IS features: (1)Signal Bandwidth: DC to 2 kHz; (2)Selectable Gain: x1, x2, x4, x8, x16, x32, x64; (3)Differential Inputs, Differential Outputs; (4)Excellent Noise Performance; (5)Low Total Harmonic Distortion; (6)Low Power Consumption; (7)Single or Dual Power Supply Configurations.

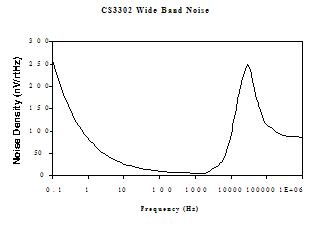

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 CS3302-IS |
Cirrus Logic |
Special Purpose Amplifiers IC Hi-Z Prog Gain Differential Amp |
Data Sheet |
Negotiable |
|
||||
|
CS3302-ISR |
Cirrus Logic |
Special Purpose Amplifiers IC Hi-Z Prog Gain Differential Amp |
Data Sheet |
Negotiable |
|
||||
|
CS3302-ISZ |
Cirrus Logic |
Special Purpose Amplifiers IC Hi-Z Prog Gain Differential Amp |
Data Sheet |
Negotiable |
|
||||
|
CS3302-ISZR |
Cirrus Logic |
Special Purpose Amplifiers IC Hi-Z Prog Gain Differential Amp |
Data Sheet |
Negotiable |
|
||||
