SN75LVDS83BZQLR

transmitter, 170mW, 3.3V, BGA-56

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.15~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.15~1.50

PartNumber:: SN75LVDS83BZQLR

Brand:: Texas Instruments - TI | Pack: BGA | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Chen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-31

From Other Seller

Part Number:SN75LVDS83BZQLR
US $1.15 - 1.50
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
TOP259EN

US $1.10 - 3.20 / Piece
(0) Remove
Quantity:

piece

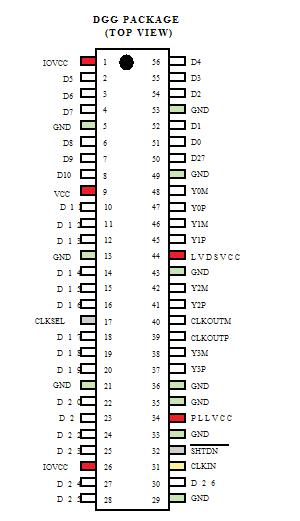

Product Summary

The SN75LVDS83BZQLR is a transistter. The SN75LVDS83BZQLR requires no external components and little or no control. The data bus appears the same at the input to the transmitter and output of the receiver with the data transmission transparent to the user(s). The only user intervention is selecting a clock rising edge by inputting a high level to CLKSEL or a falling edge with alow-level input, and the possible use of the Shutdown/Clear (SHTDN). SHTDN is an active-low input to inhibit theclock, and shut off the LVDS output drivers for lower power consumption. A low-level on this signal clears allinternal registers to a low-level. The SN75LVDS83BZQLR is characterized for operation over ambient air temperatures of -10℃ to 70℃. The SN75LVDS83BZQLR is an alternative to the SN75LVDS83B for clockfrequency range of 10MHz-100MHz only. The SN75LVDS83A is available in the TSSOP package option only.

Parametrics

SN75LVDS83BZQLR absolute maximum ratings: (1)Supply voltage range: -0.5 to 4V; (2)Voltage range at any output terminal: -0.5 to VCC + 0.5V; (3)Voltage range at any input terminal: -0.5 to IOVCC + 0.5V; (4)ESD rating-Human Body Model (HBM)(3) all pins: 5kV; (5)ESD rating-Charged Device Model (CDM)(4) all pins: 500V; (6)ESD rating-Machine Model (MM)(5) all pins: 150V.

Features

SN75LVDS83BZQLR features： (1)LVDS Display Serdes Interfaces Directly to Low-Voltage DifferentialLCD Display Panels with Integrated LVDS; (2)Package Options: 4.5mm x 7mm BGA, and 8.1mm x 14mm TSSOP; (3)1.8V up to 3.3V Tolerant Data Inputs to Connect Directly to Low-Power, Low-Voltage Application and Graphic Processors; (4)Transfer Rate up to 135Mpps (Mega Pixel Per Second); Pixel Clock Frequency Range 10MHz to 135MHz; (5)Suited for Display Resolutions Ranging From; (6)Operates From a Single 3.3V Supply and 170mW (typ.) at 75MHz; (7)Consumes Less Than 1mW When Disabled; (8)Selectable Rising or Falling Clock Edge Triggered Inputs; (9)ESD: 5kV HBMApplication and Graphic Processors; (10)Support Spread Spectrum Clocking (SSC).
