Product Summary

The 735-3C-C-T is a general purpose power relay.

Parametrics

735-3C-C-T absolute maximum ratings: (1)Contact material: AgSnO alloy; (2)Contact resistance: 50mΩ Max.(for 735) ; 100mΩ Max.(for 735H); (3)Operate time: 25 ms Max.; (4)Release time: 20 ms Max.; (5)Operating ambient temperature: -30 to +55 ℃ (no freezing) (for 735H).

Features

735-3C-C-T features: (1)20A/25A general purpose Power Relays.; (2)SPDT, DPDT, TPDT contact configurations.; (3)DC & AC coils are both available.; (4)Optional for flange covers, tapped core w/anti-rotation tab, indicator lamp, push-to-test button, PCB terminals; (5)Comply with RoHS-Directive 2002/95/EC.

Diagrams

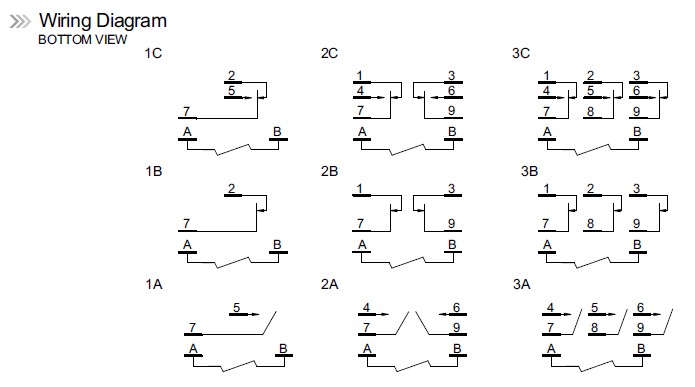

735-3C-C-T writing diagram
