Product Summary

The TGA2806-SM is an ultra-CATV Linear Amplifier, packaged gain block which operates from 40 MHz to 1000 MHz. It typically provides flat gain along with ultra-low distortion. It also provides high output power with low DC power consumption. This amplifier is ideally suited for use in CATV distribution systems or other applications requiring extremely low noise and distortion. The part is lead-free and RoHS compliant. Evaluation boards are available upon request. The applications of the TGA2806-SM include CMTS Equipment, CATV Line Amplifiers.

Parametrics

TGA2806-SM absolute maximum ratings: (1)Vd-Vg, Drain to Gate Voltage: 11 V; (2)Vd1, Vd2, Drain Voltage: 10 V; (3)Vg1, Gate Voltage Range: -1 to 3 V; (4)Vg2, Gate Voltage Range: 0 to 5 V; (5)Id1, Drain Current: 275 mA; (6)Id2, Drain Current: 275 mA; (7)Pin, Input Continuous Wave Power per RF input: 25 dBm; (8)Tchannel, Channel Temperature: 200℃.

Features

TGA2806-SM features: (1)Frequency range: 40 MHz to 1 GHz; (2)Gain: 20 dB; (3)1.7 dB 75 Ohm noise figure; (4)Ultra-low distortion: -67 dBc ACPR typical; (5)Low DC power consumption; (6)Single supply bias:+8V, 380m A; (7)Package dimensions: 5.0 x 5.0 x 0.85 mm.

Diagrams

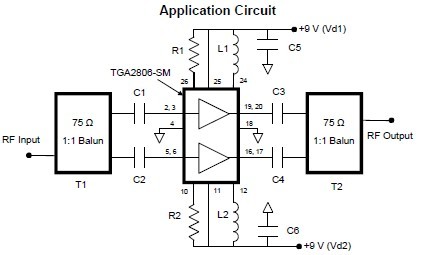

TGA2806-SM block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TGA2806-SM-T/R
TGA2806-SM-T/R

TriQuint Semiconductor

RF Amplifier CATV Linear Amp

Data Sheet

0-1: $13.00
1-25: $11.24
25-100: $10.70
100-250: $9.23
