Product Summary

The Texas Instruments BQ27510DRZT system-side Li-Ion battery fuel gauge is a microcontroller peripheral that provides fuel gauging for single-cell Li-Ion battery packs. The BQ27510DRZT requires little system microcontroller firmware development. The BQ27510DRZT resides on the system’s main board and manages an embedded battery (non-removable) or a removable battery pack. The BQ27510DRZT uses the patented Impedance Track algorithm for fuel gauging, and provides information such as remaining battery capacity (mAh), state-of-charge (%), run-time to empty (min.), battery voltage (mV), and temperature (°C). Battery fuel gauging with the BQ27510DRZT requires only PACK+ (P+), PACK– (P–), and Thermistor (T) connections to a removable battery pack or embedded battery. Applications include Smartphones, PDAs, Digital Still and Video Cameras, Handheld Terminals and MP3 or Multimedia Players.

Parametrics

BQ27510DRZT absolute maximum ratings: (1)Regulator input voltage: –0.3 to 24 V; (2)Supply voltage range: –0.3 to 2.75 V; (3)Open-drain I/O pins (SDA, SCL, BAT_LOW/BAT_GD): –0.3 to 6 V; (4)BAT input pin: –0.3 to 6 V; (5)Input voltage range to all other pins: (TS, SRP, SRN, BI/TOUT) –0.3 to VCC + 0.3 V; (6)Functional temperature range: –40 to 100℃; (7)Storage temperature range:–65 to 150℃; (7)ESD-Human Body Model (HBM), BAT pin: 1.5KV; (8)ESD-Human Body Model (HBM), all other pins: 2KV.

Features

BQ27510DRZT features: (1)Battery Fuel Gauge for 1-Series Li-Ion Applications; (2)Resides on System Main Board; (3)Microcontroller Peripheral Provides Accurate Battery Fuel Gauging, Battery Low Interrupt Warning, Battery Insertion Indicator, 96 Bytes of Non-Volatile Scratch Pad FLASH; (4)Battery Fuel Gauging Based on Patented Impedance Track Technology; (5)Small 12-pin 2,5 mm × 4 mm SON Package.

Diagrams

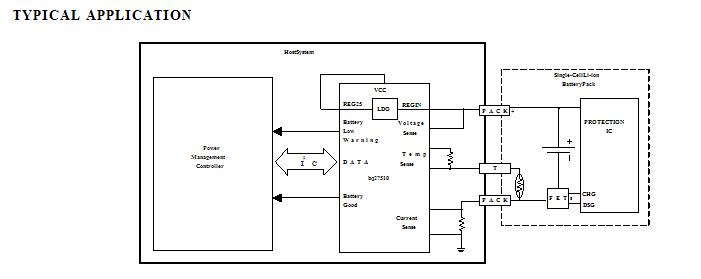

BQ27510DRZT TYPICAL APPLICATION

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
BQ27510DRZT
BQ27510DRZT

Texas Instruments

Battery Management Sys Side Impedance Track Fuel Gge

Data Sheet

0-1: $2.66
1-25: $2.47
25-100: $1.61
100-250: $1.50
BQ27510DRZT-G1
BQ27510DRZT-G1

Texas Instruments

Battery Management Sys-Side Imp Track Fuel Gauge

Data Sheet

0-1: $2.18
1-25: $1.93
25-100: $1.77
100-250: $1.51
BQ27510DRZT-G2
BQ27510DRZT-G2

Texas Instruments

Battery Management Sys-Side Impedance- Track Fuel Gauge

Data Sheet

0-1: $2.24
1-25: $1.68
25-100: $1.53
100-250: $1.36
BQ27510DRZTG4
BQ27510DRZTG4

Texas Instruments

Battery Management Fuel Gauge w/ Integ LDO

Data Sheet

0-1: $2.68
1-25: $2.15
25-100: $1.72
100-250: $1.51
