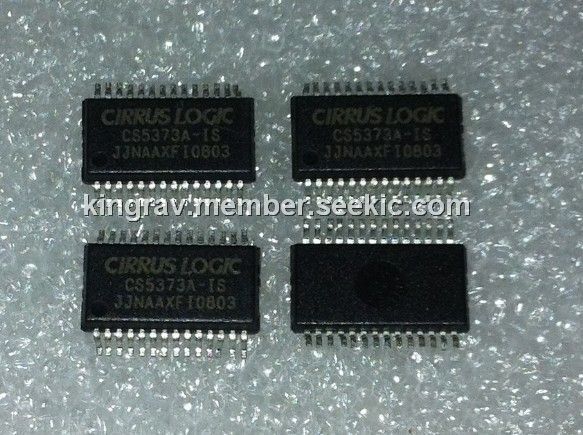

Product Summary

The CS5373A-IS is a high-performance, fourth-order modulator integrated with a digital-to-analog convert-er (DAC). When combined with a CS5373A-ISZ differential amplifier and the CS5373A-IS digital filter, asmall, low-power, self-testing, high-accuracy, single-channel measurement system results.The CS5373A-IS has high dynamic range and low total har-monic distortion with very low power consumption. It converts differential analog input signals from the CS5373A-IS amplifier to an oversampled serialbit stream at 512 kbits per second. This oversampled bitstream is then decimated by the CS5373A-IS digital filter to a 24-bit output at the selected output word rate.

Parametrics

CS5373A-IS absolute maximum ratings: (1)DC Power Supplies: -0.5 to +6.8V (Positive Analog), -6.8 to +0.5V (Negative Analog), -0.5 to +6.8V (Digital); (2) Analog Supply Differential: -6.8V; (3)Digital Supply Differential: -7.6 V; (4) Input Current (Power Supplies): ±50 mA; (5)Input Current (Any Pin Except Supplies): ±10 mA; (6)Output Current: ±25 mA; (7)Power Dissipation: 500 mW; (8)Analog Input Voltage:(VA-)-0.5~(VA+)+0.5 V; (9)Digital Input Voltages: -0.5(VD)~+0.5 V.

Features

CS5373A-IS features: (1)High Dynamic Range; (2)Low Total Harmonic Distortion; (3)Selectable Differential Analog Outputs; (4)Multiple AC and DC Operational Modes; (5)Outstanding Performance; (6)Low Power Consumption; (7)Extremely Small Footprint; (8)Bipolar Power Supply Configuration.

Diagrams

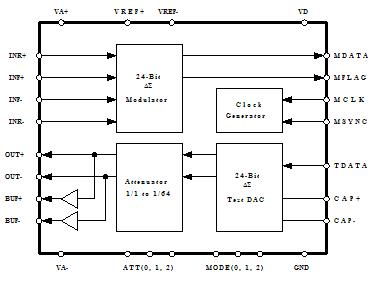

CS5373A-ISZ circuit diagram
