Product Summary

The 832A-1C-F-C is a Heavy duty 30A general purpose Power Relay.

Parametrics

832A-1C-F-C general specifications: (1)Contact material AgSnO / AgNi alloy; (2)Contact resistance:50 m7 Max.; (3)Operate time:15 ms Max.; (4)Release time:10 ms Max.; (5)Insulation resistance:1000 M7 Min. (DC 500V); (6)Vibration resistance: Operating extremes:10Hz to 55Hz , amplitude 1.5 mm, Damage limits:10Hz to 55Hz , amplitude 1.5 mm; (7)Shock resistance: Operating extremes:10G, Damage limits:100G; (8)Operating ambient temperature:-55℃ to +85℃ (no freezing).

Features

832A-1C-F-C features: (1)Heavy duty 30A general purpose Power Relays; (2)UL/CUL (UL 508 & 873), VDE safety approvals; (3)Optional for open frame, dust cover, sealed type and with and without quick terminal on top, etc; (4)High insulation type & high dielectric strength type available; (5)Contact gap to 2.0mm, high dielectric strength 4000Vrms; (6)UL Insulation Class F; (7)Ideal for HVAC, UPS & power supply, Home Appliances; (8)Comply with RoHS-Directive 2002/95/EC.

Diagrams

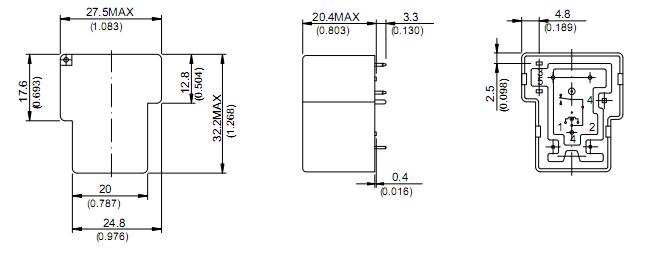

832A-1C-F-C package dimensions

832A-1A-D-24VDC
832A-1A-D-24VDC

Song Chuan

General Purpose / Industrial Relays

Data Sheet

0-50: $1.20
832A-1A-S-12VDC-VDE
832A-1A-S-12VDC-VDE

Song Chuan

General Purpose / Industrial Relays 1FormA SPST 12V

Data Sheet

0-1: $1.40
1-25: $1.25
25-50: $1.12
50-100: $1.06
832A519
832A519

Bomar Interconnect

RF Adapters - In Series F BLKHD ADAPTOR J/J

Data Sheet

0-1: $1.28
1-10: $1.25
10-25: $1.22
25-50: $1.18
832A519N
832A519N

Bomar Interconnect

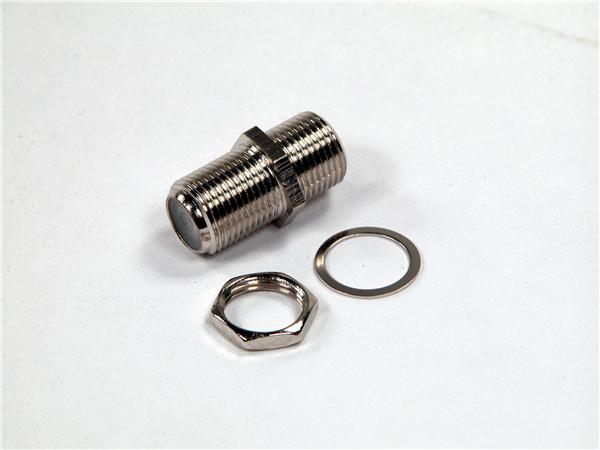

RF Adapters - In Series F BLKHD J/J ADAPTER W/NUT&WASH
