Product Summary

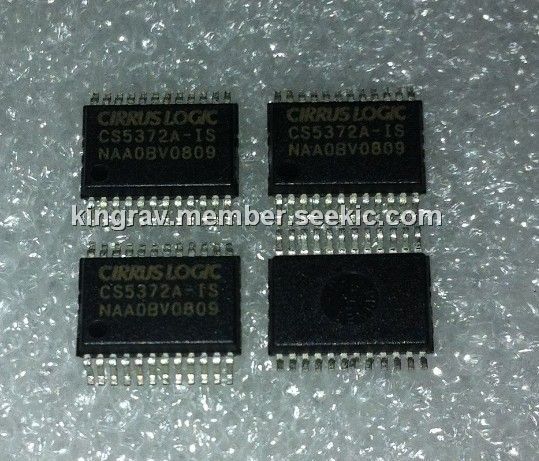

The CS5372A-IS is a high-dynamic-range, fourth-order modulator intended for geophysical and sonar applications. When combined with CS5372A-IS differential amplifier, The modulators have high dynamic range and low total harmonic distortion with very low power consumption. The CS5372A-IS converts differential analog input signals from the CS5372A-IS amplifier to an oversampled serial bit stream at 512 kbits per second. This oversampled bit stream is then decimated by the CS5376A digital filter to a 24-bit output at the selected output word rate. In normal operation, power consumption is 5 mA per channel. Each modulator can be independently powered down to 500 μA per channel, and by halting the input clock they will enter a micro-power state using only 2 μA per channel. The CS5372A-IS modulator is available in small 24-pin SSOP packages, providing exceptional performance in a very small footprint.
Parametrics
CS5372A-IS absolute maximum ratings: (1)DC Power Supplies: -0.5 +6.8V (Positive Digital), -6.8 +0.5V (Positive Analog), -0.5 +6.8V (Negative Analog); (2) Analog Supply Differential: 6.8V; (3)Digital Supply Differential: 6.8V; (4) Input Current (Power Supplies): ±50 mA; (5)Input Current (Any Pin Except Supplies): ±10 mA; (6)Output Current: ±25 mA; (7)Power Dissipation: 500 mW; (8)Analog Input Voltage:(VA-)-0.5~(VA+)+0.5 V; (9)Digital Input Voltages: -0.5(VD)~+0.5 V; (10)Storage Temperature: -65~150℃.
Features
CS5372A-IS features: (1)Fourth-order Architecture; (2)Clock-jitter-tolerant Architecture; (3)Input Voltage: 5 Vpp Fully Differential; (4)Input Signal Bandwidth: DC to 2 kHz; (5)High Dynamic Range; (6)Low Total Harmonic Distortion; (7)Low Power Consumption; (8)Small Footprint, 24-pin SSOP package; (9)Multi-channel System Support; (10)Bipolar Power Supply Configuration.

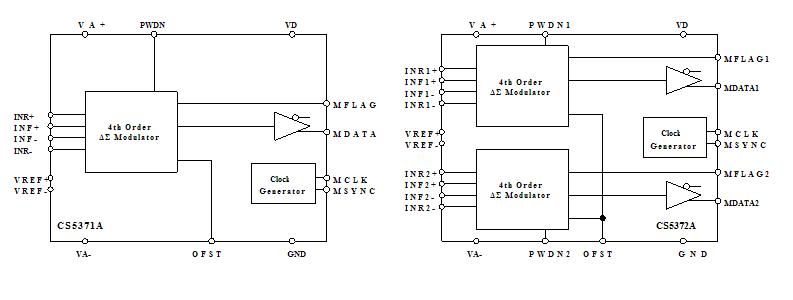

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CS5372A-IS |
Cirrus Logic |
Interface - Specialized LP High Performance Delta Sigma Mod. |
Data Sheet |
Negotiable |
|
||||||
|
CS5372A-ISR |
Cirrus Logic |
Interface - Specialized LP High Performance Delta Sigma Mod. |
Data Sheet |
Negotiable |
|
||||||
|
CS5372A-ISZR |
Cirrus Logic |
ADC (A/D Converters) LP High Performance Delta Sigma Mod. |
Data Sheet |
|
|
||||||
|
CS5372A-ISZ |
Cirrus Logic |
Interface - Specialized IC LP Hgh Prfrmnc Delta Sigma Modultr |
Data Sheet |
|
|
||||||
