Product Summary

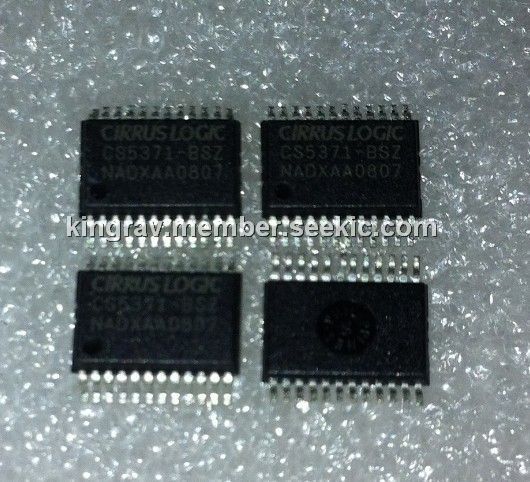

The CS5371-BSZ is a one- and two-channel,high dynamic range, fourth-order modulators intend-ed for geophysical and sonar applications. The CS5371-BSZ is a unique high-resolution A/D measurement system results. The CS5371-BSZ generates an oversampled serial bitstream at 512 kbits per second when operated from aclock frequency of 2.048 MHz. The CS5371-BSZ is available in asmall 24-pin SSOP package, providing exceptional per-formance in a very small footprint.
Parametrics
CS5371-BSZ absolute maximum ratings: (1)Specified Temperature Range: -40~+85℃; (2)Input Signal Frequencies: 1720Hz; (3)Input Signal plus Common Mode: (VA-)+0.7V~-(VA+)-1.7V; (4)Common Mode Rejection Ratio: 90 dB; (5)Channel Crosstalk (CS5372 only): -120 dB; (6)Power Supply Rejection: 90 dB.
Features
CS5371-BSZ features: (1)High Dynamic Range; (2)Low Total Harmonic Distortion; (3)Low Power Consumption; (4)Small Footprint, 24-pin SSOP Package; (5)Single- or Multi-channel System Support; (6)Single or Dual Power Supply Configurations.
Diagrams
<IMG alt="CS5371-BSZ circuit" src="http://www.seekic.com/uploadfile/ic-mfg/201210120425969.jpg" border=0>
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 CS5371-BSZ |
Cirrus Logic |
ADC (A/D Converters) IC LP Hgh Prfrmnc Delta Sigma Modultr |
Data Sheet |
Negotiable |
|
||||
|
CS5371-BSZR |
Cirrus Logic |
ADC (A/D Converters) LP High Performance Delta Sigma Mod. |
Data Sheet |
Negotiable |
|
||||
