Product Summary

The MT48LC32M16A2TG-75 IT:C is a high-speed CMOS, dynamic random-access memory containing 536,870,912 bits. The MT48LC32M16A2TG-75 IT:C is internally configured as a quad-bank DRAM with a synchronous interface (all signals are registered on the positive edge of the clock signal, CLK). The MT48LC32M16A2TG-75 IT:C provides for programmable READ or WRITE burst lengths of 1, 2, 4, or 8 locations, or the full page, with a burst terminate option. An auto precharge function may be enabled to provide a self-timed row precharge that is initiated at the end of the burst sequence.

Parametrics

MT48LC32M16A2TG-75 IT:C absolute maximum ratings: (1)Voltage on VDD, VDDQ Supply Relative to VSS:-1V to +4.6V; (2)Voltage on Inputs, NC or I/O Pins Relative to VSS:-1V to +4.6V; (3)Operating Temperature:0℃ to +70℃; (4)Storage Temperature (plastic):-55℃ to +150℃; (5)Power Dissipation:1W.

Features

MT48LC32M16A2TG-75 IT:C features: (1)PC100- and PC133-compliant; (2)Fully synchronous; all signals registered on positive edge of system clock; (3)Internal pipelined operation; column address can be changed every clock cycle; (4)Internal banks for hiding row access/precharge; (5)Programmable burst lengths: 1, 2, 4, 8, or full page; (6)Auto Precharge, includes concurrent auto precharge, and Auto Refresh Modes; (7)Self Refresh Mode; (8)64ms, 8,192-cycle refresh; (9)LVTTL-compatible inputs and outputs; (10)Single +3.3V ±0.3V power supply.

Diagrams

MT48LC32M16A2TG-75 IT:C circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

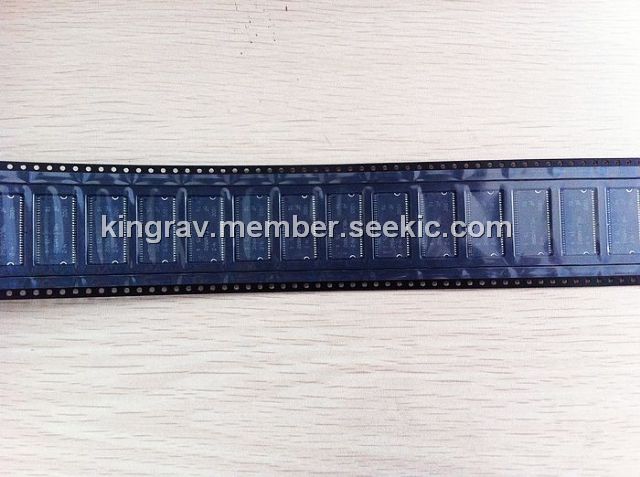

MT48LC32M16A2TG-75 IT:C TR
MT48LC32M16A2TG-75 IT:C TR


IC SDRAM 512MBIT 133MHZ 54TSOP

Data Sheet

0-1: $20.25
1-10: $19.04
10-25: $18.38
25-50: $17.80
50-100: $15.66
100-250: $15.25
250-500: $14.78
