XR16V554IV-F

quad Universal Asynchronous Receiver, Full modem interface, 3.6V, 64LQFP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $6.50~8.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $6.50~8.00

PartNumber:: XR16V554IV-F

Brand:: Exar Corporation - EXAR | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Chen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-29

From Other Seller

Part Number:XR16V554IV-F
US $6.50 - 8.00
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

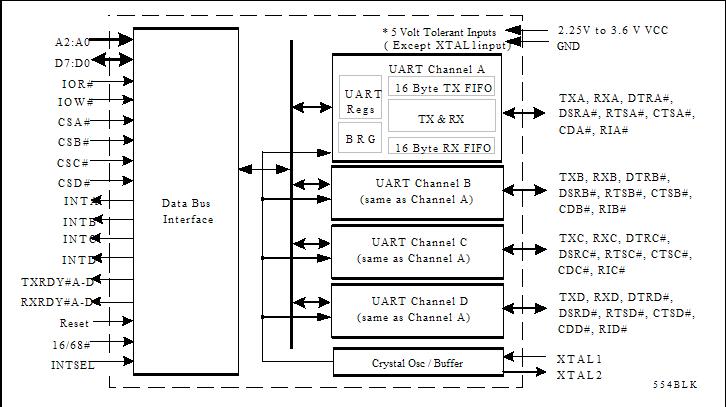

The XR16V554IV-F is a quad Universal Asynchronous Receiver and Transmitter (UART) with 16 bytes of transmit and receive FIFOs, selectable receive FIFO trigger levels and data rates of up to 4 Mbps at 3.3 V. Each UART has a set of registers that provide the user with operating status and control, receiver error indications, and modem serial interface controls. An internal loopback capability allows onboard diagnostics. The XR16V554IV-F is available in a 48-pin QFN, 64-pin LQFP, 68-pin PLCC and 80-pin LQFP packages. The 64-pin and 80-pin packages only offer the 16 mode interface, but the 48- and 68-pin packages offer an additional 68 mode interface which allows easy integration with Motorola processors. The XR16V554IV-F(64-pin) offers three state interrupt output while the XR16V554DIV provides continuous interrupt output. The XR16V554IV-F is compatible with the industry standard ST16C554. Applications include Portable Appliances, Telecommunication Network Routers, Ethernet Network Routers, Cellular Data Devices and Factory Automation and Process Controls.

Parametrics

XR16V554IV-F absolute maximum ratings: (1)Power Supply Range: 4 Volts; (2)Voltage at Any Pin: GND-0.3 V to 5.5 V; (3)Operating Temperature: -40℃ to +85℃; (4)Storage Temperature: -65℃ to +150℃; (5)Package Dissipation: 500 mW.
