Product Summary

The 835L-1A-C is a PCB Relay.

Parametrics

835L-1A-C general specifications: (1)Contact material:AgSnO / AgNi alloy; (2)Contact resistance:100mΩ Max. ; (3)Operate time:10ms Max.; (4)Release time:7ms Max.; (5)Insulation resistance:100MΩ Min. (DC 500V); (6)Vibration resistance: Operating extremes:10 to 50Hz, amplitude 1.0 mm, Damage limits:10 to 50Hz, amplitude 1.0 mm; (7)Shock resistance: Operating extremes:10G, Damage limits:100G; (8)Operating ambient temperature:-40℃ to +85℃ (no freezing); (9)Weight Approx.:6 g.

Features

835L-1A-C features: (1)Miniature 12A 125VAC, 10A 250VAC/30VDC PCB Relay; (2)UL/CUL, CSA, TUV, VDE approved; (3)450mW and 200mW coil are available; (4)Optional for high CTI 250 plastic material (E version) and VDE approved type; (5)Comply with RoHS-Directive 2002/95/EC.

Diagrams

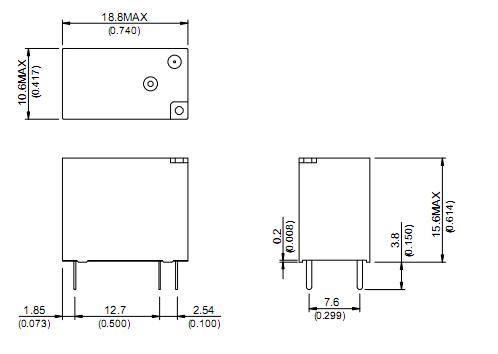

835L-1A-C package dimensions
