Product Summary

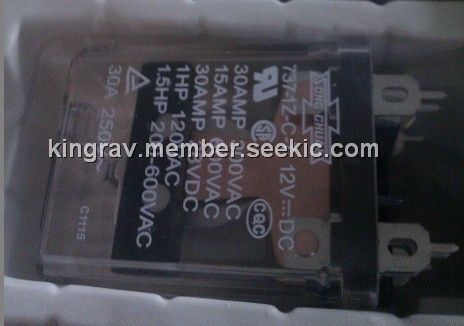

The 737-1Z-C-T is a 30A general purpose Power Relay.

Parametrics

737-1Z-C-T general specifications: (1)Contact material:AgCdO / AgSnO alloy; (2)Contact resistance:50 mΩ Max.; (3)Operate time:25 ms Max.; (4)Release time:20 ms Max.; (5)Insulation resistance:1000 MΩ Min. (DC 500V); (6)Vibration resistance:Operating extremes:10Hz to 55Hz , amplitude 2.0 mm, Damage limits:10Hz to 55Hz , amplitude 2.0 mm; (7)Shock resistance: Operating extremes:10G, Damage limits:100G; (8)Operating ambient temperature:-40℃ to +75℃ (no freezing); (9)Weight:Approx. 83 g.

Features

737-1Z-C-T features: (1)30A general purpose Power Relay; (2)SPDM, SPDB, SPDM+DB contact configurations; (3)AC & DC coils are both available; (4)Optional for anti-rotation tab, tapped core indicator lamp & push-to-test button, flanged covers. (side flange & top flange).

Diagrams

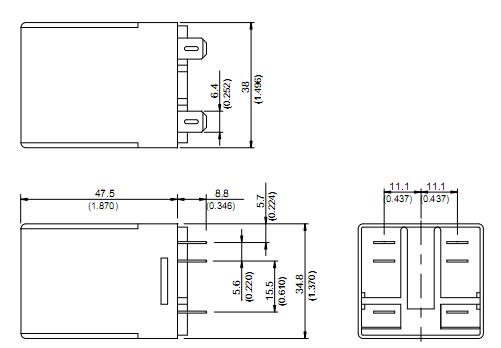

737-1Z-C-T pin configuration

737-030-520-206
737-030-520-206

EDAC

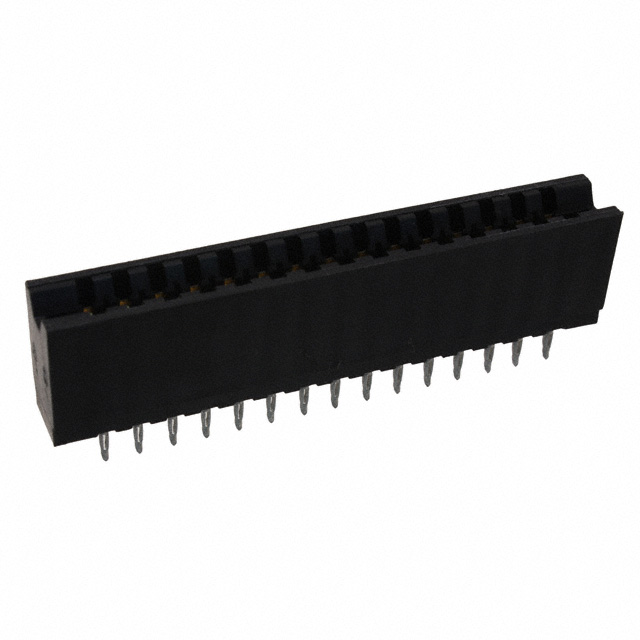

Standard Card Edge Connectors 30P DUAL ROW .156"

Data Sheet
