Product Summary

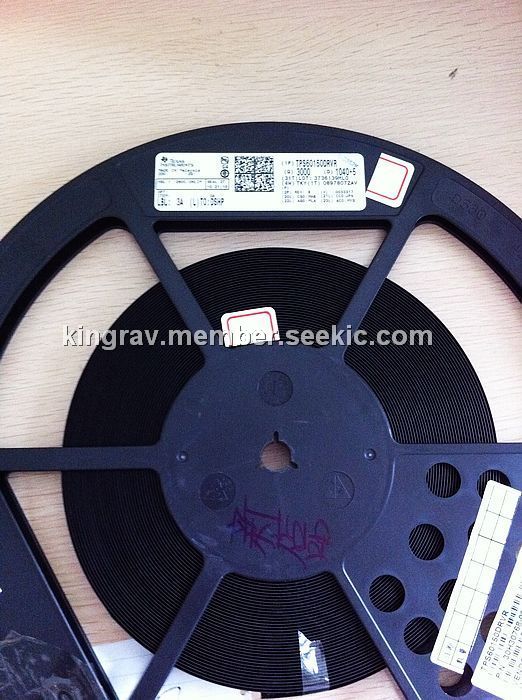

The TPS60150DRVR is a switched capacitor voltage converter which produces a regulated, low noise, and low-ripple output voltage (5V) from an unregulated input voltage.
Parametrics
TPS60150DRVR absolute maximum ratings: (1)Input voltage range (all pins):-0.3V to 7V; (2)HBM ESD Rating:2kV; (3)CDM ESD Rating:500V; (4)MM ESD Rating:200V; (5)Operating temperature range:-40℃ to 85℃; (6)Maximum operating junction temperature:150℃; (7)Storage temperature:-55℃ to 150℃.
Features
TPS60150DRVR features: (1)2.7V to 5.5V Input Voltage Range; (2)Fixed Output Voltage of 5.0V; (3)X2 Charge Pump; (4)1.5 MHz Switching Frequency; (5)Maximum Output Current : 140mA; (6)2X2 QFN With 0.8mm Height; (7)Typical 90 μ A Quiescent Current at no Load Condition (Skip mode); (8)Hardware En/Disable Function; (9)Built-in Soft Start; (10)Built-in Under Voltage Lock Out Protection; (11)Thermal and Over Current Protection.

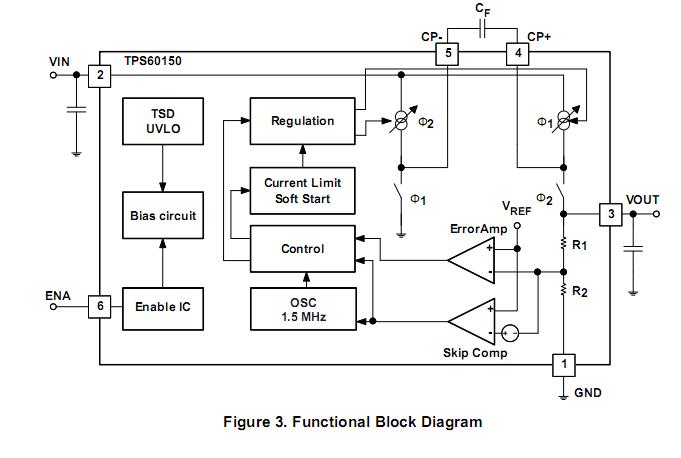

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TPS60150DRVR |
Texas Instruments |
Charge Pumps 150mA,5V Charge Pump |
Data Sheet |
|
|
||||||||||||
