Product Summary
The SCLB-W-DPDT-C is a 5A general purpose Power Relay.
Parametrics
SCLB-W-DPDT-C specifications: (1)Contact material: AgNi /AgCdO /Ag alloy; (2)Contactresistance: 50mΩ Max.; (3)Operate time: 25ms Max.; (4)Release time: 25ms Max.; (5)Insulation resistance: 100MΩ Min.(DC500V) Between open contact: AC500V,50/60Hz 1min.; (6)Dielectric strength: Between contact and coil:AC 1500V, 50/60Hz 1min, Between contact circuits: AC1500V, 50/60Hz 1min.; (7)Vibration resistance: Operating extremes10～55Hz, amplitude 1.0mm, Damage limits 10～55Hz, amplitude 1.0mm.
Features
SCLB-W-DPDT-C features: (1)5A general purpose Power Relay; (2)DPDT & 4PDT contact configurations; (3)AC & DC coil; (4)Epoxy sealed type and or flux free type; (5)Optional to be equipped with lamp, stud, diode, flashed contact, and flanged cover.

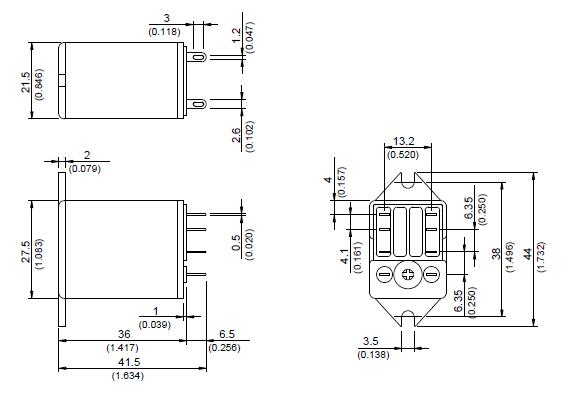

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SCLB-W-DPDT-C120VAC |
Song Chuan |
General Purpose / Industrial Relays DPDT 5A 120VAC |
Data Sheet |
|
|
||||||||||||
|
SCLB-W-DPDT-C-12VDC |
Song Chuan |
General Purpose / Industrial Relays DPDT 5A 12VDC |
Data Sheet |
|
|
||||||||||||
|
SCLB-W-DPDT-C-24VDC |
Song Chuan |
General Purpose / Industrial Relays DPDT 5A 24VDC |
Data Sheet |
|
|
||||||||||||
