Product Summary
The MAX3232CUE+ transceiver has a proprietary low-dropout transmitter output stage enabling true RS-232 performance from a 3.0V to 5.5V supply with a dual charge pump. The device requires only four small 0.1μF external chargepump capacitors. The MAX3232CUE+ is guaranteed to run at data rates of 120kbps while maintaining RS-232 output levels. It has 2 receivers and 2 drivers.
Parametrics
Absolute maximum ratings:(1)VCC:-0.3V to +6V; (2)V+ (Note 1):-0.3V to +7V; (3)V- (Note 1):+0.3V to -7V; (4)V+ + V- (Note 1):+13V; (5)Input Voltages: T_IN, SHDN, EN:-0.3V to +6V; MBAUD:-0.3V to (VCC + 0.3V); R_IN:±25V; (6)Output Voltages: T_OUT:±13.2V; R_OUT:-0.3V to (VCC + 0.3V); (7)Short-Circuit Duration: T_OUT:Continuous; (8)Continuous Power Dissipation (TA = +70℃): 16-Pin Plastic DIP (derate 10.53mW/℃ above +70℃): 842mW; 16-Pin Narrow SO (derate 8.70mW/℃ above +70℃):696mW; 16-Pin Wide SO (derate 9.52mW/℃ above +70℃):762mW; 16-Pin TSSOP (derate 6.7mW/℃ above +70℃):533mW; 18-Pin Plastic DIP (derate 11.11mW/℃ above +70℃):889mW; 18-Pin SO (derate 9.52mW/℃ above +70℃):762mW; 20-Pin SSOP (derate 8.00mW/℃ above +70℃) :640mW; 20-Pin TSSOP (derate 7.0mW/℃ above +70℃):559mW; 28-Pin SO (derate 12.50mW/℃ above +70℃):1W; 28-Pin SSOP (derate 9.52mW/℃ above +70℃):762mW; 28-Pin TSSOP (derate 8.7mW/℃ above +70℃):696mW; (9)Operating Temperature Ranges: MAX32_ _E_ _ :-40℃ to +85℃; (10)Storage Temperature Range:-65℃ to +150℃; (11)Lead Temperature (soldering, 10sec):+300℃.
Features
Features: (1) Low Supply Current: 300μA ; (2)Guaranteed Data Rate: 120kbps; (3)Flow-Through Pinout; (4)Meets EIA/TIA-232 Specifications Down to 3.0V; (5)Guaranteed Mouse Driveability; (6)Pin Compatible with Industry-Standard MAX3232; (7)Guaranteed Slew Rate: 6V/μs.
Diagrams

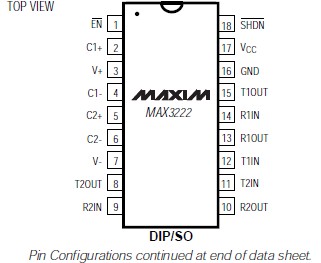

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX3232CUE+ |
Maxim Integrated Products |
RS-232 Interface IC 3-5.5V 1Mbps Transceiver |
Data Sheet |
|
|
||||||||||||
|
MAX3232CUE+T |
Maxim Integrated Products |
RS-232 Interface IC 3-5.5V 1Mbps Transceiver |
Data Sheet |
|
|
||||||||||||
