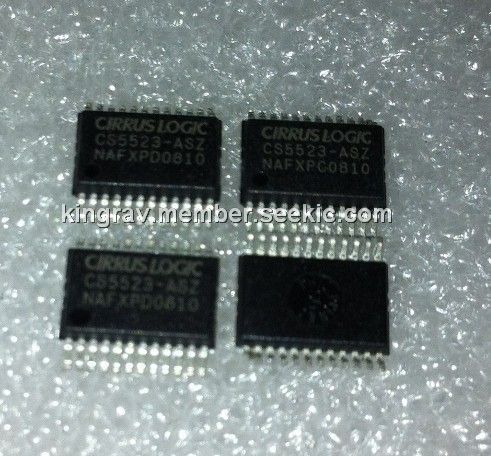

CS5523-ASZ

Product Summary

The CS5523-ASZ is a highly integrated ΔΣ analog-to-digital converter (ADC) which use chargebalance techniques to achieve 24-bit performance. The CS5523-ASZ comes as four-channel and include a low-input-current, chopper-stabilized instrumentation amplifier. To permit selectable input spans of 25 mV, 55 mV, 100 mV, 1 V, 2.5 V, and 5 V, the ADCs include a PGA (programmable gain amplifier). To accommodate ground-based thermocouple applications, the CS5523-ASZ includes a charge pump drive which provides a negative bias voltage to the on-chip amplifiers.

Parametrics

CS5523-ASZ absolute maximum ratings: (1)DC Power Supplies, Positive Digital, VD+: -0.3 to +6V; Positive Analog, VA+: -0.3 to +6.0V; (2)Negative Bias Voltage Negative Potential, NBV: +0.3 to -3.0 V; (3)Input Current, Any Pin Except Supplies, IIN: ±10 mA; (4)Output Current, IOUT: ±25 mA; (5)Power Dissipation, PDN: 500 mW; (6)Analog Input Voltage VREF pins, VINR: NBV -0.3 to (VA+) +0.3V; AIN Pins, VINA: NBV -0.3 to (VA+) +0.3V; (7)Digital Input Voltage, VIND: -0.3 to (VD+) +0.3 V; (8)Ambient Operating Temperature, TA: -40 to 85℃; (9)Storage Temperature, Tstg: -65 to 150℃.

Features

CS5523-ASZ features: (1)Low Input Current (100 pA), Chopperstabilized; (2)Instrumentation Amplifier; (3)Scalable Input Span (Bipolar/Unipolar), 2.5V VREF: 25 mV, 55 mV, 100 mV, 1 V, 2.5 V, 5 V; External: 10 V, 100 V; (4)Wide VREF Input Range (+1 to +5 V); (5)Fourth Order Delta-Sigma A/D Converter; (6)Easy to Use Three-wire Serial Interface Port, Programmable/Auto Channel Sequencer with Conversion Data FIFO; Accessible Calibration Registers per Channel; Compatible with SPI. and Microwire.; (7)System and Self Calibration; (8)Eight Selectable Word Rates, Up to 617 Sps (XIN = 200 kHz); Single Conversion Settling; 50/60 Hz ∮3 Hz Simultaneous Rejection; (9)Single +5 V Power Supply Operation, Charge Pump Drive for Negative Supply, +3 to +5 V Digital Supply Operation; (10)Low Power Consumption: 6.0 mW.

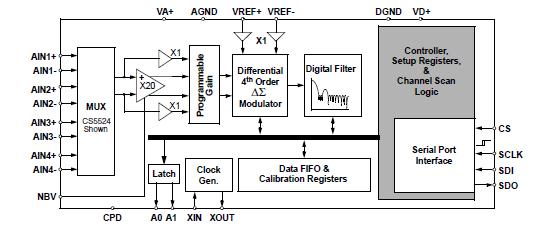

Diagrams
