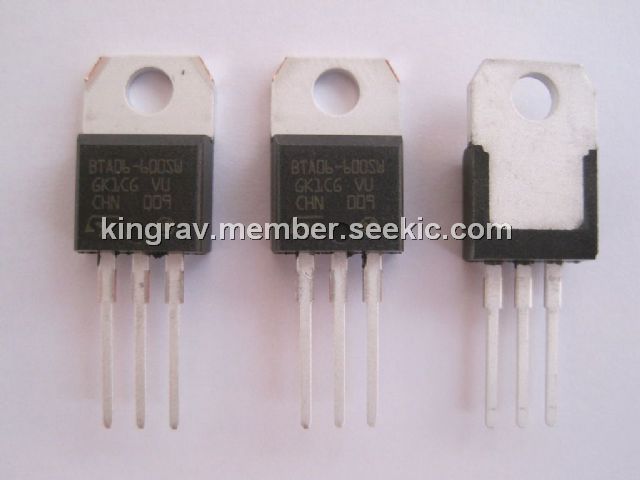

BTA06-600SWRG

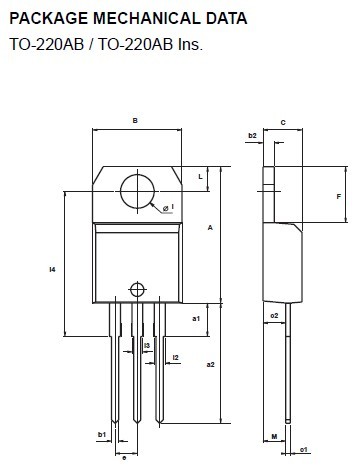

TO-220AB, snubberless, logic level

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~0.60 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.50~0.60

PartNumber:: BTA06-600SWRG

Brand:: STMicroelectronics - ST | Pack: TO | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Chen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-03-24

From Other Seller

Part Number:BTA06-600SWRG
US $0.50 - 0.60
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
RTL8102EL

US $1.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The BTA06-600SWRG is suitable for AC switching operations, the BTA/BTB06 series can be used as an ON/OFF function in applications such as static relays, heating regulation, induction motor starting circuits or for phase control in light dimmers, motor speed controllers. The snubberless and logic level versions (BTA/BTB W) are specially recommended for use on inductive loads, thanks to their high commutation performances. By using an internal ceramic pad, the BTA series provides voltage insulated tab (rated at 2500V RMS) complying with UL standards.

Parametrics

Absolute maximum ratings:(1)RMS on-state current (full sine wave), TO-220AB Tc = 110℃, IT(RMS): 6A; (2)RMS on-state current (full sine wave), TO-220AB Ins. Tc = 105℃, IT(RMS): 6A; (3)Non repetitive surge peak on-state current (full cycle, Tj initial = 25℃), F = 50 Hz t = 20 ms, ITSM: 60A; (4)Non repetitive surge peak on-state current (full cycle, Tj initial = 25℃), F = 60 Hz t = 16.7ms, ITSM: 63; (5)I2t Value for fusing, tp = 10 ms, I2t: 21A2s; (6)Critical rate of rise of on-state current, IG = 2 x IGT , tr＜100 ns, F = 120 Hz Tj = 125℃, dI/dt: 50A/μs; (7)Peak gate current, tp = 20 μs Tj = 125℃, IGM: 4A; (8)Average gate power dissipation, Tj = 125℃, PG(AV): 1W; (9)Storage junction temperature range, Tstg: - 40 to + 150℃; (10)Operating junction temperature range, Tj: - 40 to + 125℃.
