Product Summary

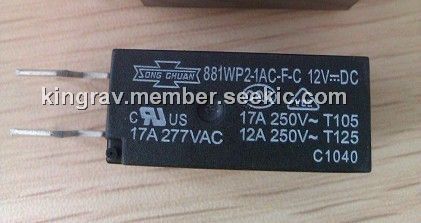

The 881WP2-1AC-F-C is a relay.
Parametrics
881WP2-1AC-F-C general specifications: (1)Contact material:AgNi alloy; (2)Contact resistance: 100mΩ Max.; (3)Operate time: 20ms Max.; (4)Release time: 10ms Max.; (5)Insulation resistance: 1000MΩ Min. (DC 500V); (6)Dielectric strength: Between open contact: AC 1000V, 50/60Hz 1 min., Between contact and coil : AC 5000V, 50/60Hz 1 min.; (7)Vibration resistance: Operating extremes:10Hz to 55Hz , amplitude 1.5 mm, Damage limits:10Hz to 55Hz , amplitude 1.5 mm; (8)Shock resistance: Operating extremes:10G, Damage limits:100G; (9)Operating ambient temperature:-40℃ to +105℃ (no freezing); (10)Weight Approx.:13 g.
Features
881WP2-1AC-F-C features: (1)Low Profile 15.7mm w/ fasten terminals; (2)High Rating 17A 277VAC; (3)High temperature withstand up to 125℃ ; (4)UL/CUL, VDE 0700 approvals; (5)Comply with RoHS-Directive 2002/95/EC, and ELV-Directive 2000/53/EC.

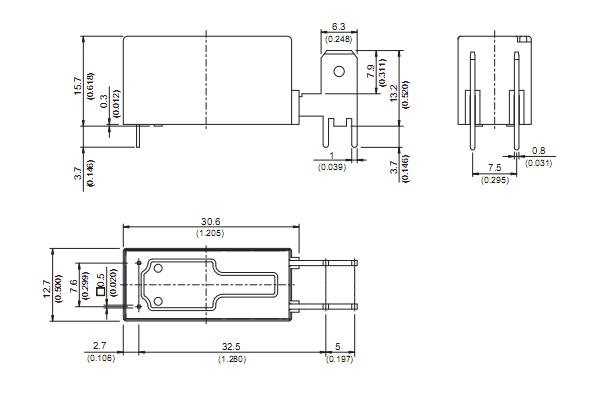

Diagrams
 |
