Product Summary

The 833H-1A-C is a relay.

Parametrics

833H-1A-C specifications: (1)Contact material: AgCdO alloy; (2)Contact resistance: 100mΩ Max.; (3)Operate time: 10ms Max.; (4)Release time: 5ms Max.; (5)Insulation resistance:100MΩ Min.(DC500V); (6)Dielectric strength: Between open contact: AC500V, 50/60Hz 1min, Between contact and coil: AC1500V, 50/60Hz 1min.

Features

833H-1A-C features: (1)Low cost miniature PCB sugar cube relay; (2)General purpose application; (3)10A 277VAC, 15A 125VAC ratings; (4)SPNO, SPNC, SPDT and sealed flux free & sealed type washable are available.

Diagrams

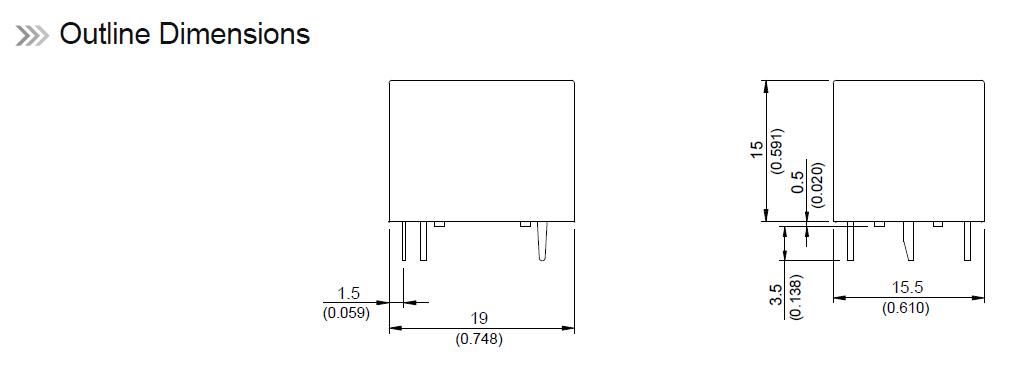

833H-1A-C Outline Dimensions diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
833H-1A-C-12VDC
833H-1A-C-12VDC

Song Chuan

General Purpose / Industrial Relays 10A 12VDC SPNO, Flux Sugar Cube

Data Sheet

0-1: $0.59
1-25: $0.54
25-50: $0.48
50-100: $0.46
833H-1A-C-18VDC
833H-1A-C-18VDC

Song Chuan

General Purpose / Industrial Relays 10A 18VDC SPNO, Flux Sugar Cube

Data Sheet

0-1: $0.59
1-25: $0.54
25-50: $0.48
50-100: $0.46
833H-1A-C-24VDC
833H-1A-C-24VDC

Song Chuan

General Purpose / Industrial Relays 10A 24VDC SPNO, Flux Sugar Cube

Data Sheet

0-1: $0.59
1-25: $0.54
25-50: $0.48
50-100: $0.46
833H-1A-C-5VDC
833H-1A-C-5VDC

Song Chuan

General Purpose / Industrial Relays 10A 5VDC SPNO, Flux Sugar Cube

Data Sheet

0-1: $0.59
1-25: $0.54
25-50: $0.48
50-100: $0.46
833H-1A-C-9VDC
833H-1A-C-9VDC

Song Chuan

General Purpose / Industrial Relays 10A 9VDC SPNO, Flux Sugar Cube

Data Sheet

0-1: $0.59
1-25: $0.54
25-50: $0.48
50-100: $0.46
