Product Summary

The 793-P-1C-V is a relay.

Parametrics

793-P-1C-V specifications: (1)Contact resistance: 30m Max.(initial value); (2)Operate time: 10ms; (3)Release time: 5ms; (4)Insulation resistance: 100M Min.(DC 500V); (5)Dielectric strength Between open contact: AC 1000V, 50/60Hz 1 min.; (6)Vibration resistance: 10~50Hz,amplitude 1.5mm; (7)Shock resistance: Operating extremes >10G, Damage limits >100G; (8)Life expectancy: Electrical >100,000 operations (frequency 1,800 operations/hr); (9)Operating temperature -40℃ ~ 70℃ (no freezing).

Features

793-P-1C-V features: (1)Miniature,16-20 amps; (2)UL,CSA,&TUV; (3)VDE 8mm spacing, 4 KV dielectric; (4)TV 10, SPNO; (5)5mm pinning; (6)Flux-tight or Sealed.

Diagrams

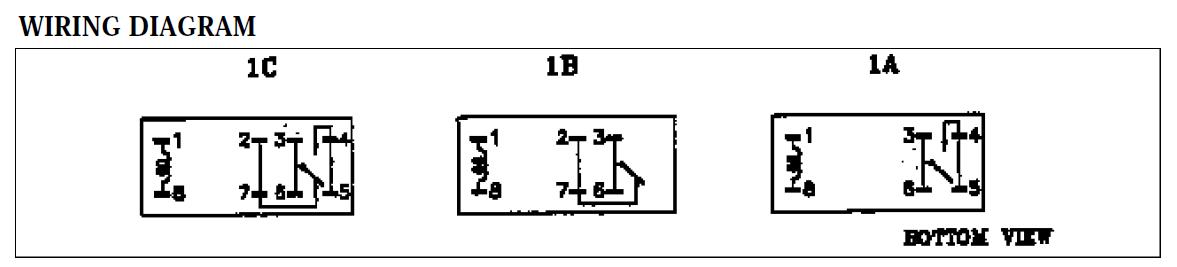

793-P-1C-V wiring diagram
