Product Summary

The 171508-5 is a connector.

Parametrics

171508-5 specifications: (1)Category: Connectors, Interconnects ; (2)Color: Red ; (3)Features: Serrated Termination ; (4)Wire Gauge: 18-22 AWG ; (5)Insulation: Insulated ; (6)Length - Overall: 0.799" (20.30mm) ; (7)Mounting Type: Free Hanging (In-Line) ; (8)Packaging: Bulk ; (9)Stud/Tab Size: 8 Stud ; (10)Terminal Type: Circular ; (11)Thickness: 0.031" (0.79mm) ; (12)Width - Outer Edges: 0.280" (7.11mm) ; (13)Termination: Crimp ; (14)Contact Material: Copper ; (15)Contact Finish: Tin ; (16)Insulation Diameter: 0.105" ~ 0.140" (2.67mm ~ 3.56mm) ; (17)Material - Insulation; (18)Lead Free Status: Lead Free ; (19)RoHS Status: RoHS Compliant.

Diagrams

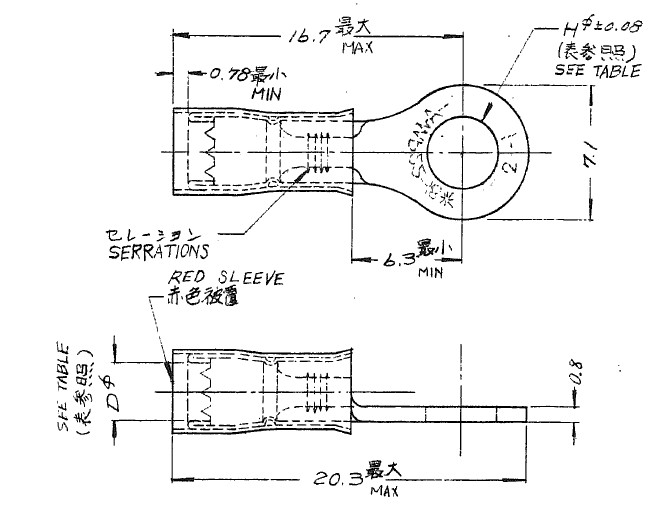

171508-5 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

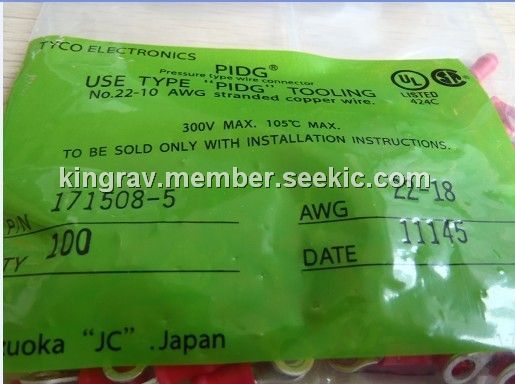

171508-5
171508-5
TE Connectivity / AMP
Terminals RING TONG 22-18 #8
Data Sheet
0-8100: $0.15
