MAX708SESA+T

microprocessor supervisory circuits, 8-pin SOIC package, logic systems

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.75~0.85 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.75~0.85

PartNumber:: MAX708SESA+T

Brand:: Maxim Integrated Products - Maxim | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Chen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-03-23

From Other Seller

Part Number:MAX708SESA+T
US $0.75 - 0.85
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
AT24C02BN-SH-T

US $0.08 - 0.15 / Piece
(0) Remove
Quantity:

piece

Product Summary

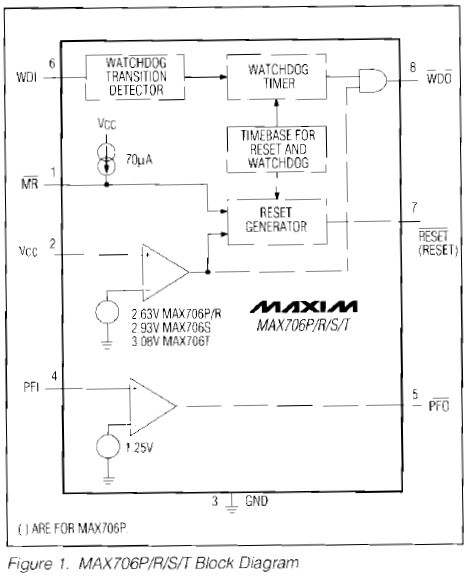

The MAX708SESA+T is microprocessor supervisory circuits used to monitor +3 V power supply levels in +3 V to +5 V microprocessor and other logic systems. The R, S, T suffixes have reset thresholds of 2.63 V, 2.93 V and 3.08 V, respectively. They reduce the number of circuit components, and improve reliability and accuracy compared to using separate ICs or discrete components. TheMAX708SESA+T features make the MAX708SESA+T ideal for use in portable, battery operated equipment. The low supply current,typically 50 μA, minimizes battery load. Both RESET and RESET are active during power-up, power-down and brownout conditions An active-LOW manual reset input is also available. A 1.25 V threshold detector provides power-fail warning. This independent comparator can be used to monitor a second voltage supply and provide an early warning to the microprocessor that voltage is falling. This allows for an orderly shutdown, transmitting an alert to an operator, or activation of an alternate power source before the device asserts the reset signals. The device is available in the 8-pin SO package.

Parametrics

Absolute maximum ratings:(1)Supply voltage, VCC: -0.3 to 6.0V ; (2)Other input pin voltage, Vn: -0.3 to VCC+0.3V ; (3)Input current at VCC or GND: the mav value is 20mA ; (4)Output current, all outputs: 20mA ; (5)Rate of rise at VCC: 100V/μs ; (6)Operating temperature,Topr: -40 to +85°C ; (7)Storage temperature, Tstg: -65 to +160°C ; (8)Power dissipation, SO8 package Tamb = 70 °C, P: 470mW.

Features

Features: (1)RESET and RESET signals; (2)Independent comparator with 1.25 V threshold for power failure or low battery warning; (3)Manual reset input; (4)50 μA quiescent current; (5)Reset thresholds of 2.63, 2.93, and 3.08 V; (6)Guaranteed RESET assertion to VCC = 1 V.
