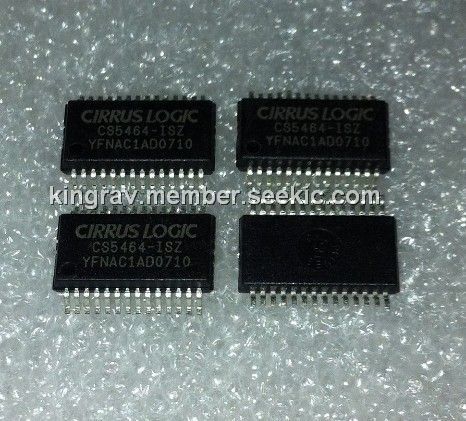

Product Summary

The CS5464-ISZ is a watt-hour meter on a chip. The CS5464-ISZ measures line voltage and current and calculates active, reactive, apparent power, energy, power factor, and RMS voltage and current. There are two separate inputs to measure line, ground, and/or neutral current enabling the meter to detect tampering and to continue operating. An internal RMS voltage reference can be used if voltage measurement is disabled by tampering.

Parametrics

CS5464-ISZ absolute maximum ratings: (1)DC Power Supplies, Positive Digital, VD+: -0.3 to +6.0V; Positive Analog, VA+: -0.3 to +6.0V; (2)Input Current, Any Pin Except Supplies, IIN: ±10 mA; (3)Output Current, Any Pin Except VREFOUT, IOUT: 100 mA; (4)Power Dissipation, PD: 500 mW; (5)Analog Input Voltage All Analog Pins, VINA|: - 0.3 to (VA+) +0.3 V; (6)Digital Input Voltage All Digital Pins, VIND: -0.3 to (VD+) +0.3 V; (7)Ambient Operating Temperature, TA: -40 to 85℃; (8)Storage Temperature, Tstg: -65 to 150℃.

Features

CS5464-ISZ features: (1)Energy Linearity: ±0.1% of Reading over 1000:1 Dynamic Range; (2)On-chip Functions: Voltage and Current Measurement; Active, Reactive, and Apparent Power/Energy; RMS Voltage and Current Calculations; Current Fault and Voltage Sag Detection; Calibration; Phase Compensation; Temperature Sensor; Energy Pulse Outputs; (3)Meets Accuracy Spec for IEC, ANSI, & JIS; (4)Low Power Consumption; (5)Tamper Detection and Correction; (6)Ground-referenced Inputs with Single Supply; (7)On-chip 2.5 V Reference (40 ppm /℃typ.); (8)Power Supply Monitor Function; (9)Three-wire Serial Interface to Microcontroller or E2PROM; (10)Power Supply Configurations GND: 0 V, VA+: +5 V, VD+: +3.3 V to +5 V.

Diagrams

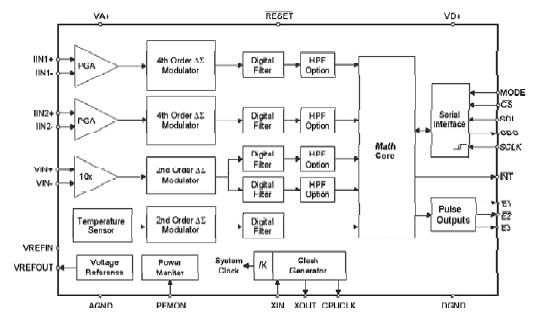

CS5464-ISZ block diagram
