Product Summary

The 812HM-1C-C is a sealed washable type 50mV PCB.

Parametrics

812HM-1C-C absolute maximum ratings: (1)Contact voltage drop Typ.: 50mV at 10A; (2)Operate time: 15ms Max.; (3)Release time: 10ms Max.; (4)Insulation resistance: 100 M to Min. (DC 500V); (5)Operating extremes: 10 to 500Hz; (6)Damage limits: 10 to 500Hz.

Features

812HM-1C-C features: (1)High performance sugar cube automotive relay; (2)Heavy duty suitable for wiper motor control, flashing lamp control, adjustable driver seat motor control, etc; (3)Optional for flux-free type or sealed washable type; (4)Comply with RoHS-Directive 2011/65/EU, and ELVDirective 2000/53/EC.

Diagrams

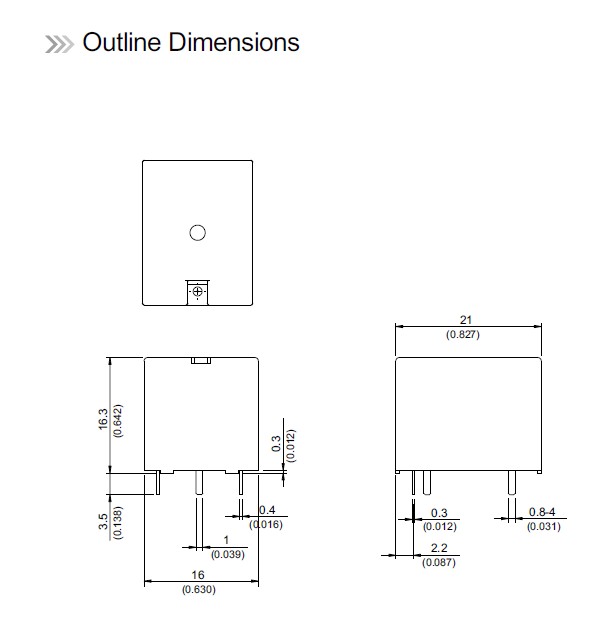

812HM-1C-C Outline Dimensions

812H-1A-C-12VDC
812H-1A-C-12VDC
Song Chuan
General Purpose / Industrial Relays 10A Mini 12VDC SPNO Flux Tight
Data Sheet
0-1: $0.65
1-25: $0.59
25-50: $0.52
50-100: $0.50
812H-1A-C-24VDC
812H-1A-C-24VDC
Song Chuan
General Purpose / Industrial Relays 24Vdc 12A Power
Data Sheet
0-1: $0.41
1-25: $0.37
25-50: $0.33
50-100: $0.31
812H-1A-S-24VDC
812H-1A-S-24VDC
Song Chuan
General Purpose / Industrial Relays 10A Mini 24VDC SPNO Sealed, Washable
Data Sheet
0-1: $0.70
1-25: $0.64
25-50: $0.56
50-100: $0.54
812H-1A-S-B-24D
812H-1A-S-B-24D
Song Chuan
General Purpose / Industrial Relays SPDT
Data Sheet
0-1: $0.82
1-25: $0.61
25-50: $0.55
50-100: $0.46
812H-1C-C-12VDC
812H-1C-C-12VDC
Song Chuan
General Purpose / Industrial Relays 10A Mini 12VDC SPDT Flux Tight
Data Sheet
0-1: $0.76
1-25: $0.70
25-50: $0.61
50-100: $0.58
812H-1C-C-24VDC
812H-1C-C-24VDC
Song Chuan
General Purpose / Industrial Relays 10A Mini 24VDC SPDT Flux Tight
Data Sheet
0-1: $0.81
1-25: $0.74
25-50: $0.65
50-100: $0.62
