Product Summary

The 801H-1C-C is a miniature PCB surge cube relay.

Parametrics

801H-1C-C absolute maximum ratings: (1)Contact material: AgSnO alloy; (2)Contact resistance: 50mΩ Max; (3)Operate time:15ms; (4)Max.Release time: 5ms Max.; (5)Insulation resistance: 100MΩ Min.(DC500V)Between open contact: AC750V,50/60Hz1min.; (6)Dielectric strength. Between contact and coil: AC1500V,50/60Hz1min; (7)Operating extremes10 to 50Hz,amplitude1.0mm; (8)Vibration resistance Damage limits: 10 to 50Hz,amplitude1.0mm.

Features

801H-1C-C features: (1)Miniature PCB surge cube relay; (2)Highrating 10A/250VAC/30VDC&TV 8with cadmium free contacts; (3)Reversecontactterminalpositionversionisavailable; (4)Optionalforsealedfluxfree&sealedwashabletypes.

Diagrams

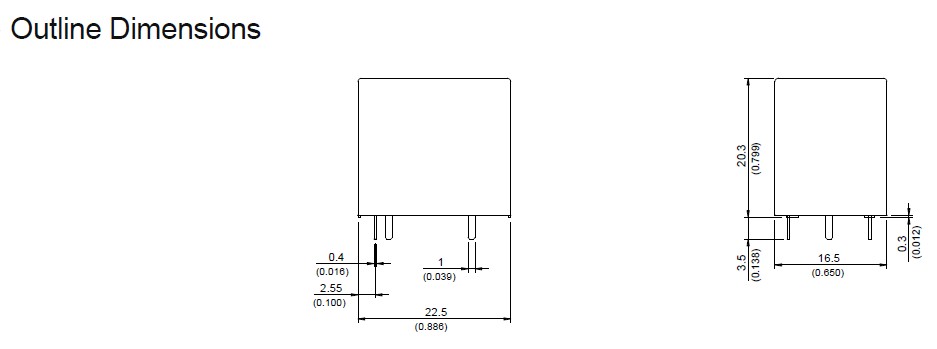

801H-1C-C OutlineDimensions

801H-1A-C-24VDC
801H-1A-C-24VDC
Song Chuan
General Purpose / Industrial Relays 1FormA SPST 24V
Data Sheet
0-1: $0.87
1-25: $0.79
25-50: $0.70
50-100: $0.66
801H-1C-S-12VDC
801H-1C-S-12VDC
Song Chuan
General Purpose / Industrial Relays 12Vdc 15A Sugar Cube
Data Sheet
0-1: $1.01
1-25: $0.90
25-50: $0.86
50-100: $0.81
801H-1C-S-24VDC
801H-1C-S-24VDC
Song Chuan
General Purpose / Industrial Relays SPDT 12A 24VDC
Data Sheet
0-1: $1.25
1-25: $1.13
25-50: $0.90
50-100: $0.86
