Product Summary

The 303-1AH-S-R1 is an ultra Micro Iso Automotive Relay.

Parametrics

303-1AH-S-R1 absolute maximum ratings: (1)Contact voltage drop: Typ. 50mV at 10A; (2)Operate time: 10 ms Max.; (3)Release time: 10 ms Max.; (4)Insulation resistance: 20 MΩ Min. (DC 500V); (5)Dielectric strength: Between open contact: AC 500V, 50/60Hz 1 min, Between contact and coil: AC 500V, 50/60Hz 1 min; (6)Vibration resistance: Operating extremes: 10~500Hz , 5.0G, Damage limits: 10~500Hz , 5.0G; (7)Operating ambient temperature: -40 ~ +125℃ (no freezing).

Features

303-1AH-S-R1 features: (1)Ultra Micro ISO Automotive relay; (2)High Rating up to 20A; (3)High Temperature withstand up to 125℃ ambient; (4)General Purpose for Automotive applications; (5)Comply with RoHS-Directive 2002/95/EC, and ELVDirective 2000/53/EC.

Diagrams

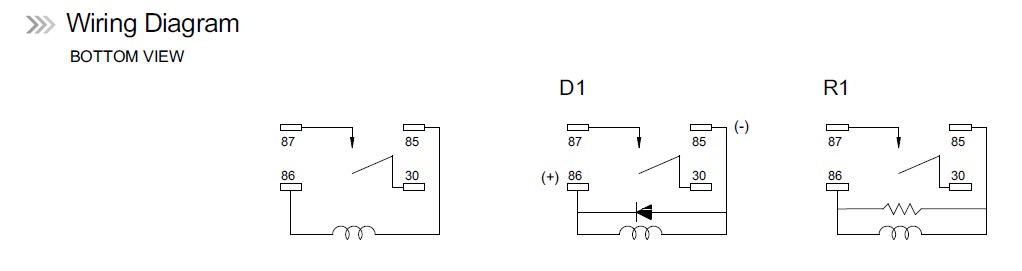

303-1AH-S-R1 writing diagram

303-1AH-C-12VDC
303-1AH-C-12VDC
Song Chuan
General Purpose / Industrial Relays SPNO 35A 12VDC
Data Sheet
0-1: $2.14
1-25: $1.60
25-50: $1.44
50-100: $1.16
303-1AH-C-R1-24VDC
303-1AH-C-R1-24VDC
Song Chuan
General Purpose / Industrial Relays ULTRA MICRO AUTO RLY SPNO 20A 24VDC
Data Sheet
0-1: $1.73
1-25: $1.58
25-50: $1.44
50-100: $1.30
303-1AH-C-R1-U01-12VDC
303-1AH-C-R1-U01-12VDC
Song Chuan
General Purpose / Industrial Relays SPNO 20A 12VDC
Data Sheet
0-1: $2.74
1-25: $2.05
25-50: $1.84
50-100: $1.43
303-1AH-S-D1-12VDC
303-1AH-S-D1-12VDC
Song Chuan
General Purpose / Industrial Relays
Data Sheet
0-25: $1.49
