Product Summary
The BQ27510DRZR system-side Li-Ionbattery fuel gauge is a microcontroller peripheral that provides fuel gauging for single-cell Li-Ion battery packs.The device requires little system microcontroller firmware development. The BQ27510DRZR resides on the system’s main board and manages an embedded battery (non-removable) or a removable battery pack. The BQ27510DRZR uses the patented Impedance Track algorithm for fuel gauging, and provides information such as remaining battery capacity(mAh), state-of-charge (%), run-time to empty (min.), battery voltage (mV), and temperature (℃). Battery fuel gauging with the BQ27510DRZR requires only PACK+(P+), PACK-(P–), and The rmistor (T) connections to a removable battery pack or embedded battery. Applications include Smartphones, PDAs, Digital Still and Video Cameras, Handheld Terminals, and MP3 or Multimedia Players.
Parametrics
BQ27510DRZR absolute maximum ratings: (1)Regulator input voltage: –0.3 to 24V; (2)Supply voltage range: –0.3 to 2.75V; (3)Open-drain I/O pins (SDA, SCL, BAT_LOW/BAT_GD): –0.3 to 6V; (4)BAT input pin: –0.3 to 6V; (5)Input voltage range to all other pins (TS, SRP, SRN, BI/TOUT): –0.3 to VCC + 0.3V; (6)Functional temperature range: –40 to 100℃; (7)Storage temperature range: –65 to 150℃; (8)ESD-Human Body Model (HBM), BAT pin: 1.5 KV; (9)ESD-Human Body Model (HBM), all other pins: 2KV.
Features
BQ27510DRZR features: (1)Battery Fuel Gauge for 1-Series Li-Ion Applications; (2)Resides on System Main Board; (3)Battery Fuel Gauging Based on Patented Impedance Track Technology; (4)Small 12-pin 2, 5 mm × 4 mm SON Package.

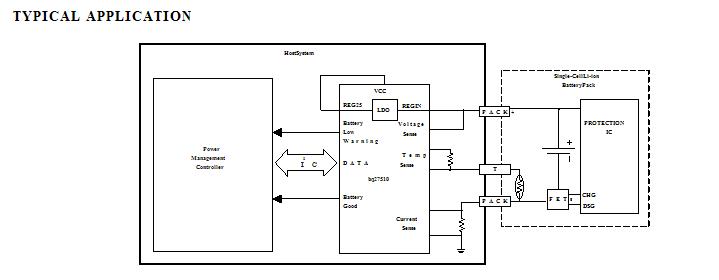

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() BQ27510DRZR |
![]() Texas Instruments |
![]() Battery Management Sys Side Impedance Track Fuel Gge |
![]() Data Sheet |
![]()
|
|
||||||||||
![]() |
![]() BQ27510DRZR-G1 |
![]() Texas Instruments |
![]() Battery Management Sys-Side Imp Track Fuel Gauge |
![]() Data Sheet |
![]()
|
|
||||||||||
![]() |
![]() BQ27510DRZR-G2 |
![]() Texas Instruments |
![]() Battery Management Sys-Side Impedance- Track Fuel Gauge |
![]() Data Sheet |
![]()
|
|
||||||||||
![]() |
![]() BQ27510DRZRG4 |
![]() Texas Instruments |
![]() Battery Management Fuel Gauge w/ Integ LDO |
![]() Data Sheet |
![]()
|
|
